Using Token2 hardware tokens for LastPass user account

LastPass is a secure password manager that stores all of your usernames and passwords in one safe place, called a vault.
Your vault is your central hub of all stored data. After you save a password to your Vault, LastPass always remembers it for you. When you need to log in to a website, LastPass enters your username and password for you.
Multi-factor authentication(MFA) and two-factor authentication(2FA) add an extra layer of security to your users' accounts, drastically reducing the chances of sensitive information being hacked by cybercriminals.
LastPass let you use Token2 programmable tokens for two-step verification.
In this article, we will show the procedures required to enrol and use Token2 programmable TOTP tokens for two-factor authentication for LastPass user accounts (as replacement for the Authenticator App).

Requirements:

• A LastPass account with admin rights
• A Token2 programmable token
• An iPhone or Android device with NFC* - this is needed for the enrollment only, subsequent logins will only require the hardware token
[* Android and Windows versions are available for all models, but this guide will use the iPhone app as an example. iPhone apps are compatible with "-i" models only]

Step 1. Enable an MFA method

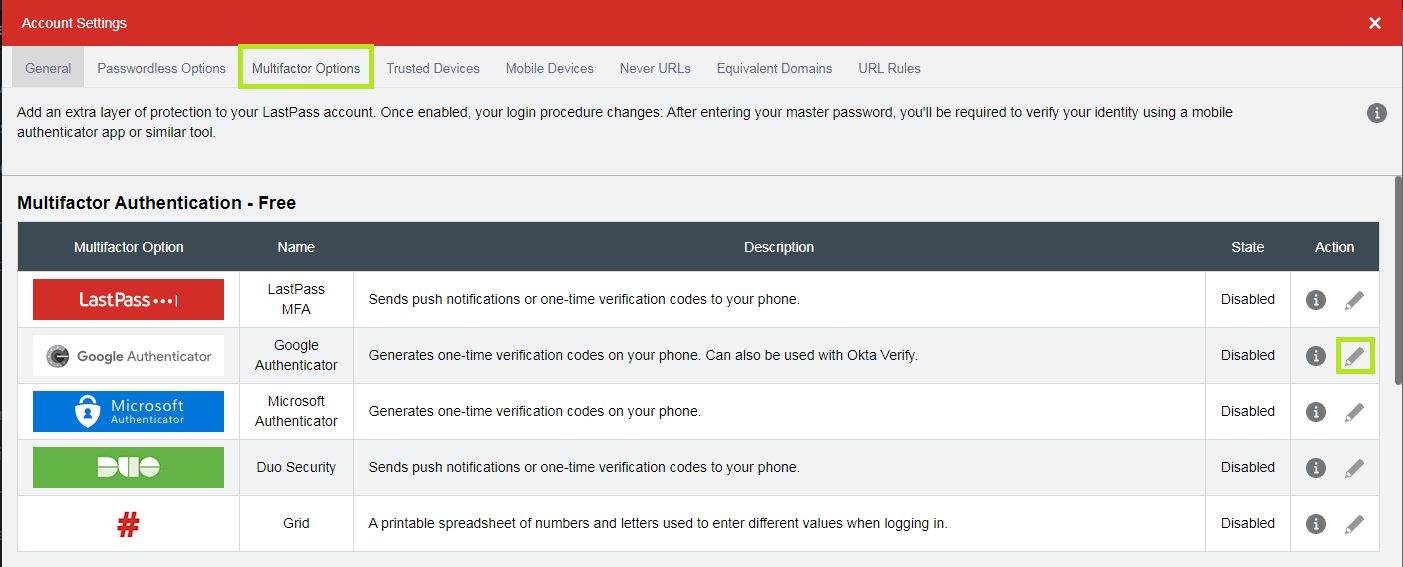

1) Log in to LastPass account, select Account Settings in the right navigation.
2) Navigate the Multifactor Options tab.

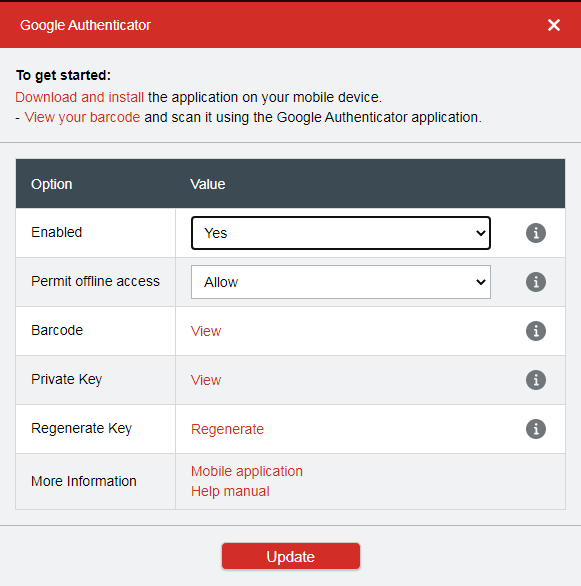

3) Click the Edit icon to the right of your "Google Authenticator" multifactor option. "Microsoft Authenticator" multifactor option can be used as well(these 2 options can not coexist together).




4) For the Enabled drop-down menu, select Yes.


5) For the Permit Offline Access drop-down menu, choose one of the following:

-Select Allow if you want to allow access to LastPass even when you are offline. This will store an encrypted vault locally so you can log in without using multifactor authentication in case of a connectivity issue.
-Select Disallow to prevent offline access, which requires the use of multifactor authentication and being connected to the Internet when using LastPass.

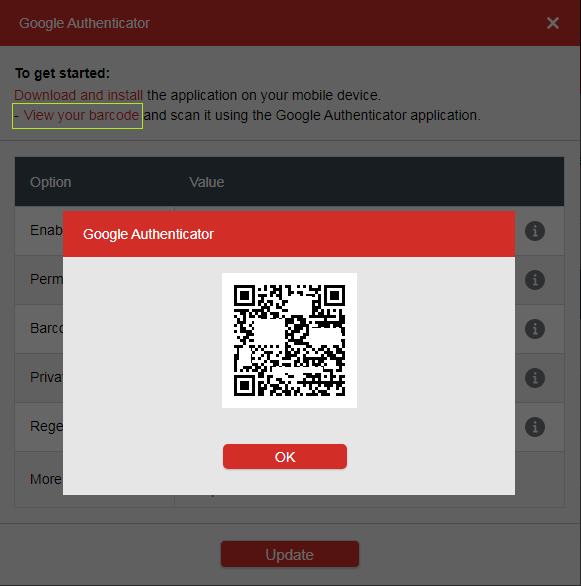

6) Click the View your barcode link , type your LastPass master password and click continue. A QR code will be displayed on the screen that you will scan using one of the provisioning tools in the next step.


Step 2. Provision the token




  • Launch the NFC burner app on your Android device and hit the "QR" button



  • Point the camera to the QR code shown on the account page. Upon a successful QR scan, the camera window should disappear
  • Turn on the token and touch it with your phone (make sure it is overlapped by the NFC antenna) and click "Connect" on the app
  • Upon successful connection, click the "Burn seed" button (the button will become active only if NFC link is established).



  • A message box similar to the one below will be shown upon successful completion

Follow the steps below to perform setting the seed for your token using Windows App.

1. Launch the exe file, then select the NFC device from the drop-down list and click on "Connect". You should see a message box notifying about a successful operation.

Token2 NFC Burner app for Windows


2. Enter or paste the seed in base32 format, or use one of the QR scanning methods to populate this field

3. Place the token onto the NFC module and wait for its serial number to appear.

Token2 NFC Burner app for Windows

4. Click on "Burn seed" button. A log entry with the serial number and "Successful operation" text will be logged in the log window.

Token2 NFC Burner app for Windows


  • Launch the NFC burner app on your iPhone device and hit the "scan QR" button



  • Point the camera to the QR code shown on the account page. Upon a successful QR scan, the camera window should disappear and the seed field will be populated with the hex value of the seed. Touch the Burn button to continue.
  • When an NFC prompt similar to the one below is shownm, turn on the token and touch the top of your iPhone with the token.


  • A message box similar to the one below will be shown upon successful completion
Please note that the procedures above are shown only as examples and are valid to single profile TOTP tokens only. The procedure for multi-profile and USB-programmable devices are similar but slightly different

Step 3. Verify the OTP

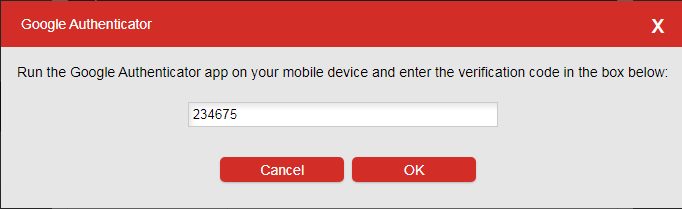

After the token provisioning is done, turn the token off and back on. Close the window with the QR code and click Update. You will be prompted to enter the verification code:



Enter the OTP generated by the hardware token and then click OK. Now, your LastPass account is protected with 2FA.
