FIDO2 over ISO 7816 (Contact IC Cards – Windows Only)

Unlike USB security keys (touch the sensor) or NFC cards (tap), contact IC cards used via a smart card reader must be removed and reinserted to complete authentication.

FIDO2 support over ISO 7816 contact interfaces is currently implemented on Windows only. Other operating systems do not provide full compatibility, therefore we recommend using this device with Windows 11 environments.

ISO 7816 transports are also not supported by common FIDO tools such as libfido2 or fido2-manage. Device provisioning and management must be performed using the Token2 Companion App.


Compatibility

Operating Systems: Windows only – plug-and-play with native Microsoft drivers.

Compatible with Windows 7, 8, 8.1, 10, 11 (32-bit & 64-bit) and Windows Server editions.

This desktop model is designed for stationary use and offers improved handling compared to mini/compact readers. It reads only contact-based smart cards with an embedded microprocessor chip.
Cards must have visible gold contacts to function correctly.

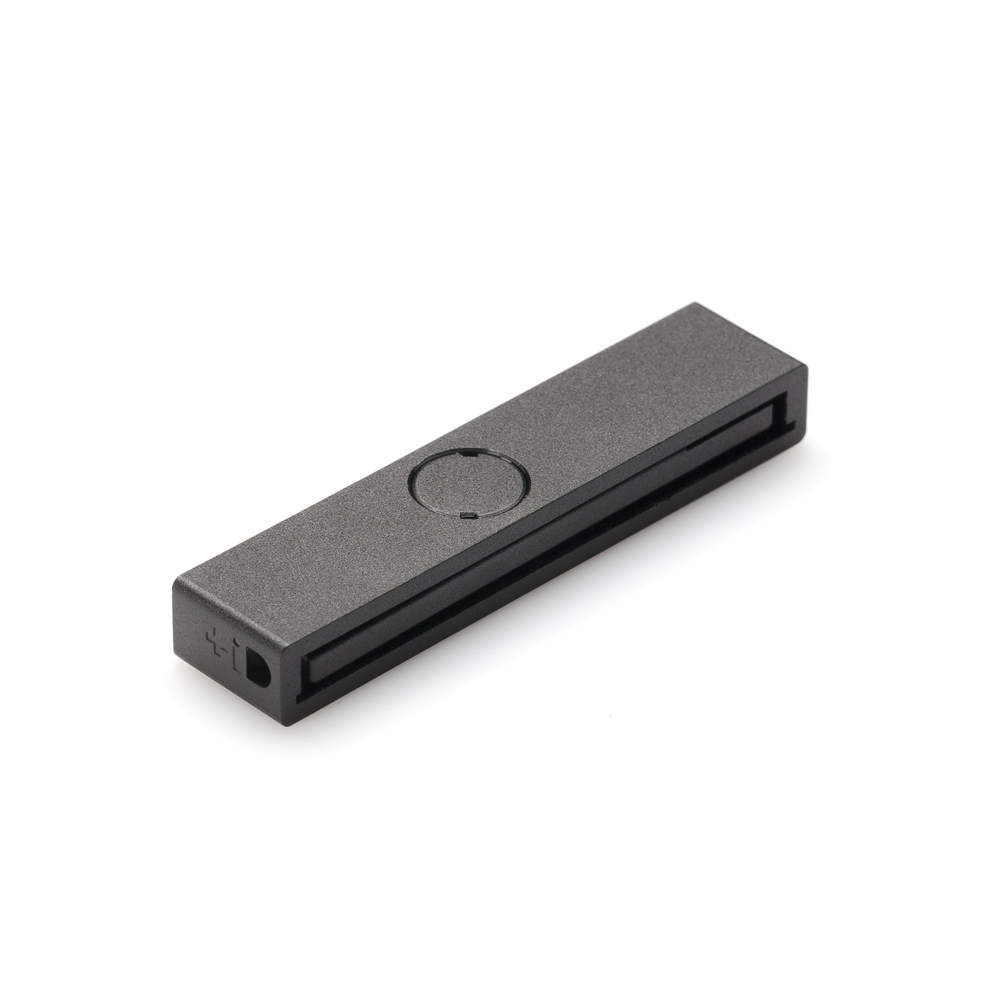

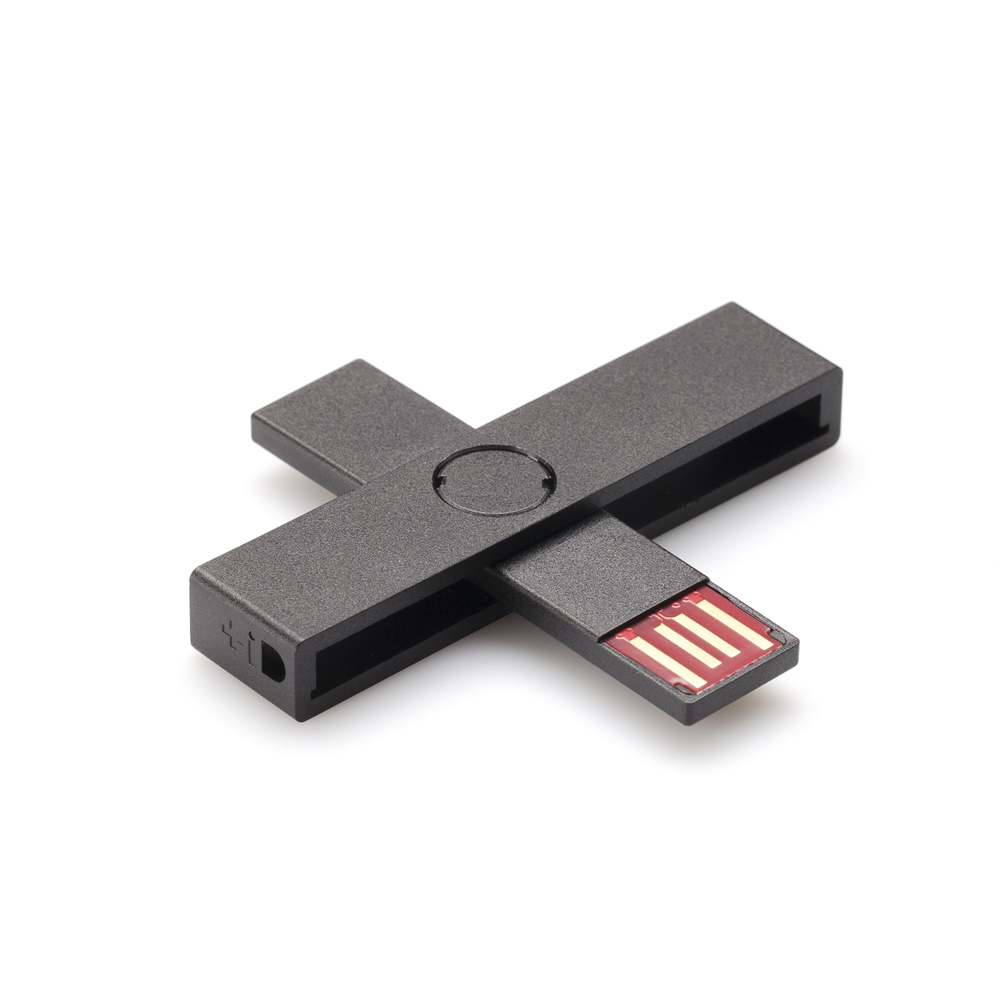

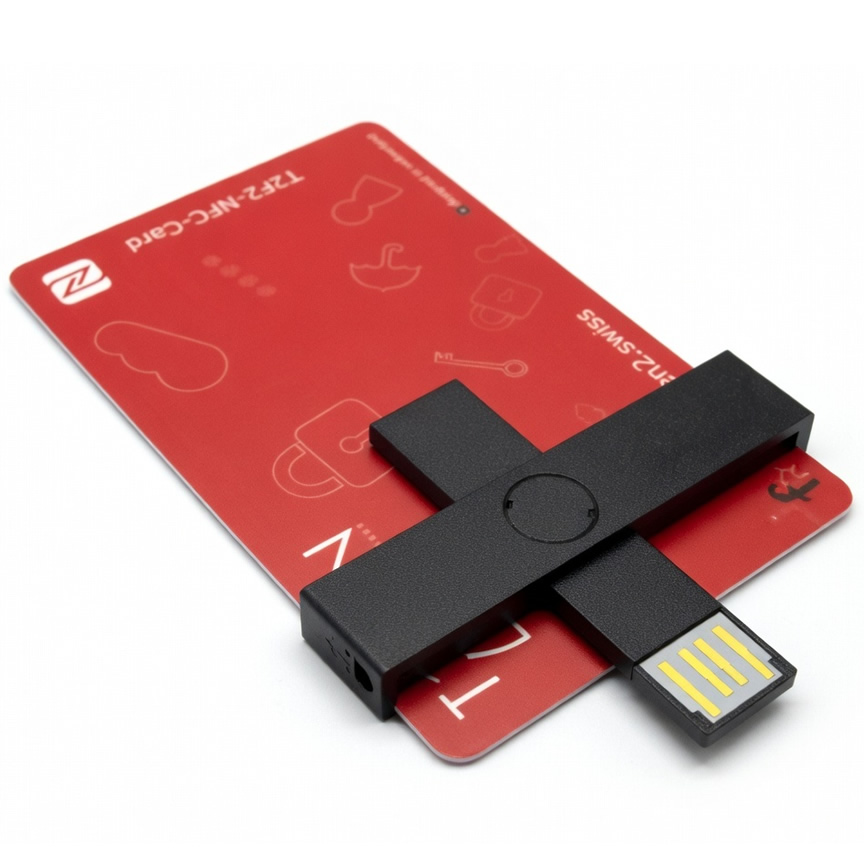

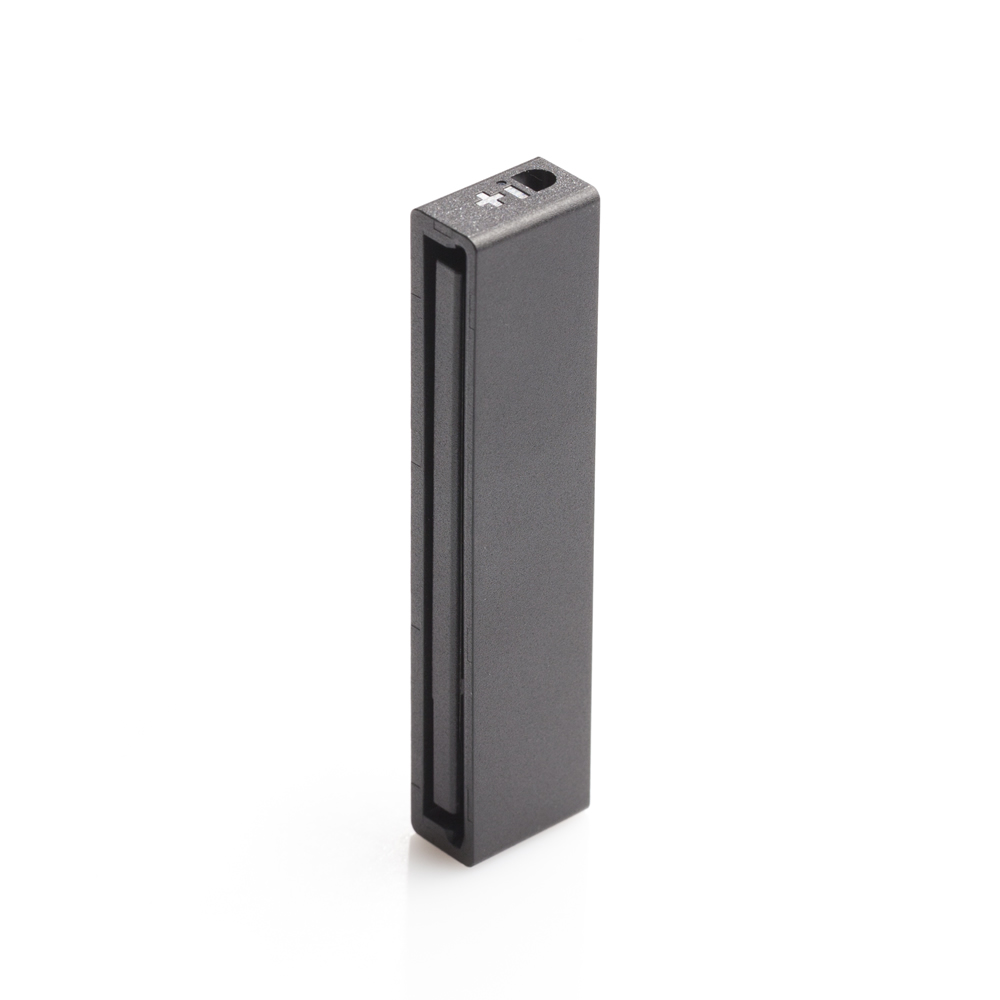

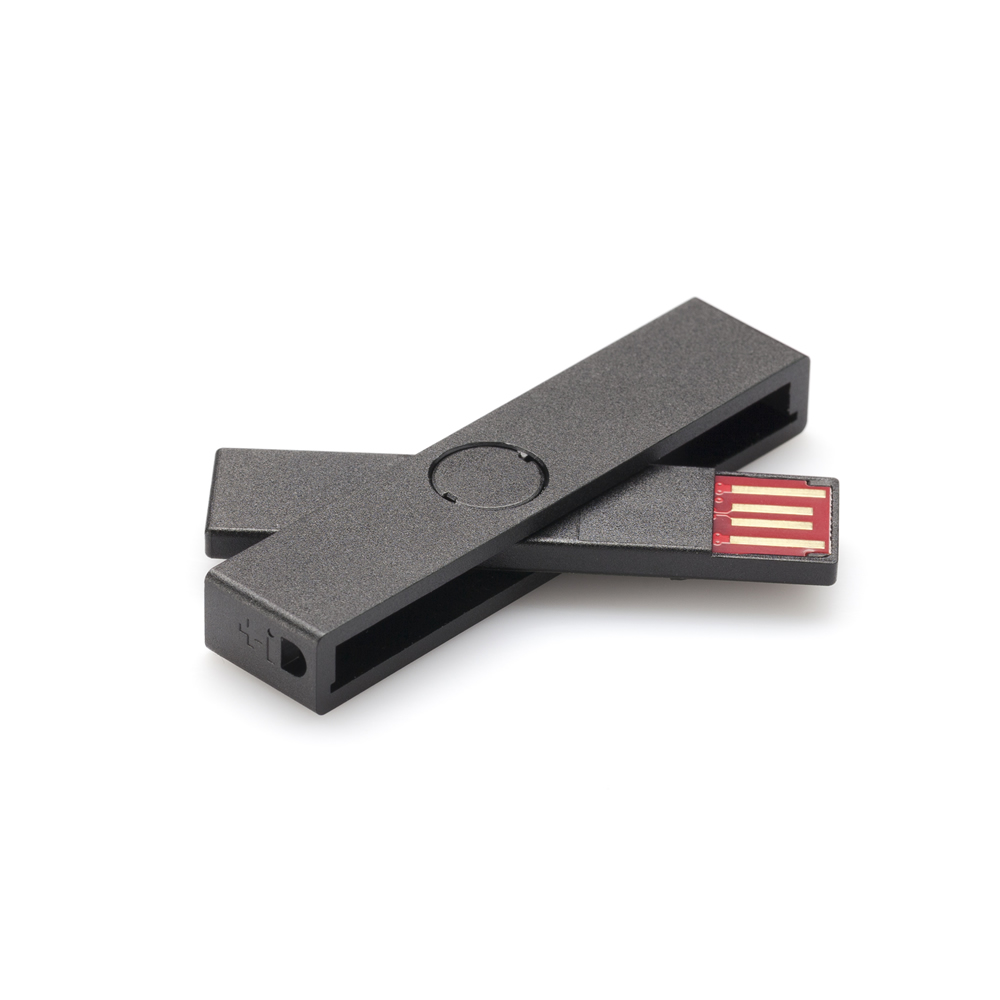

Pluss-ID Compact USB-A Contact IC Chip Reader

8.65 GBP
  shipping costs will be calculated at the checkout page


Modern professionals need security tools that travel with them.

  • Compact enough to stay on a laptop or keyring full-time
  • Durable enough for daily travel and hybrid work
  • Simple to deploy, with no extra cables, hubs, or batteries

This is exactly the gap Pluss-ID was built to fill: transforming the traditional “cable-and-brick” smart card reader into a pocket-sized companion for mobile professionals.

Reliable compact smart card reader for secure contact chip card operations.

The Compact USB-A Contact IC Chip Reader is designed for dependable, frequent use in offices, service counters, and professional workstations. It provides stable and secure communication with contact-based smart cards used in authentication systems, banking, government ID solutions, and enterprise security environments.



Notice: This product is not manufactured by Token2. It is sourced from a trusted partner, tested with our cards, and offered through our catalogue to complement our authentication solutions.


Specifications
Specification Details
Dimensions 57 mm × 12.56 mm × 7.7 mm
Weight 5 g
Power Supply 5V DC with integrated 3.3V regulator
Operating Temperature 0°C – 70°C
Operating Humidity 20% – 95%
Host Interface USB 2.0 CCID (USB 1.1 compatible) / Serial (RS232 / TTL)
Transmission Speed USB: 12 Mbps (Full Speed)
Serial: up to 115,200 kbps
Supported Standards ISO 7816, EMV 2000 Level 1
Protocols T=0, T=1, 2-wire SLE 4432/42 (S=10), 3-wire SLE 4418/28 (S=9), I²C (S=8)
Smart Card Interface Speed Up to 420 Kbps (card dependent)
Smart Card Clock Up to 8 MHz
Supported Card Types ISO 7816 Class A (5V), Class B (3V), Class C (1.8V)
Card Format ID-1 full-size smart cards
Card Thickness 0.76 mm ± 0.08 mm
Smart Card Power Up to 60 mA
Power Consumption 100 mA max, with short-circuit protection
Contact Resistance 0.5 Ω max between contact lines
Ripple 100 mVp-p max
Card Detection Automatic card type detection, movement detection with auto power-off, short-circuit and thermal protection
8-Pin Handling C4 / C8 supported
Supported APIs PC/SC (2.01 ready), CT-API, Synchronous-API, OCF, I²C
Status Indicator 1 × White LED
Compliance Microsoft WHQL, EMV 2000 Level 1, ISO 7816, USB 2.0 CCID, FCC, CE, RoHS
Material ABS / PC
Color Matte black
Durability 100,000+ card insertions
Warranty Two-year manufacturer warranty
Origin Estonia
